BK-NS120-24V(RGB)

Ask Lasest Price
Brand Name :	BOUKIN
Model Number :	BK-NS120-24V(RGB)
Certification :	CE, IES, ATEX ,UL
Price :	Negotiate
Payment Terms :	Western Union, L/C, T/T, MoneyGram
Supply Ability :	5000M-10000M/month
Delivery Time :	samples order in 3-5 days, bulk order in 15-25 working days

Add to Cart

Product Details
Company Profile

BK-NS120-24V(RGB)

Side Bend Led Neon Flex Tube Light With 6000k 100 Lm Per Watt 12W

NEON FLEX SIDE BEND Product Features

1.Customized length 1-5meters, Max 5meters/Roll
2. Side View: 6*12mm[W*H]
3. 2700K/3000K/4000K/6000K optional
4.RGBW Full color
5.RGB Pixel
6.Dual White: 2700K-6500K
7.Lighting Eficiency: up to 100lm/W
8.Perfect softness,gentle emitting, NO dazzling
9.Working Environment: -25C-65 C
10.IP67 connector for outdoor/underwater use

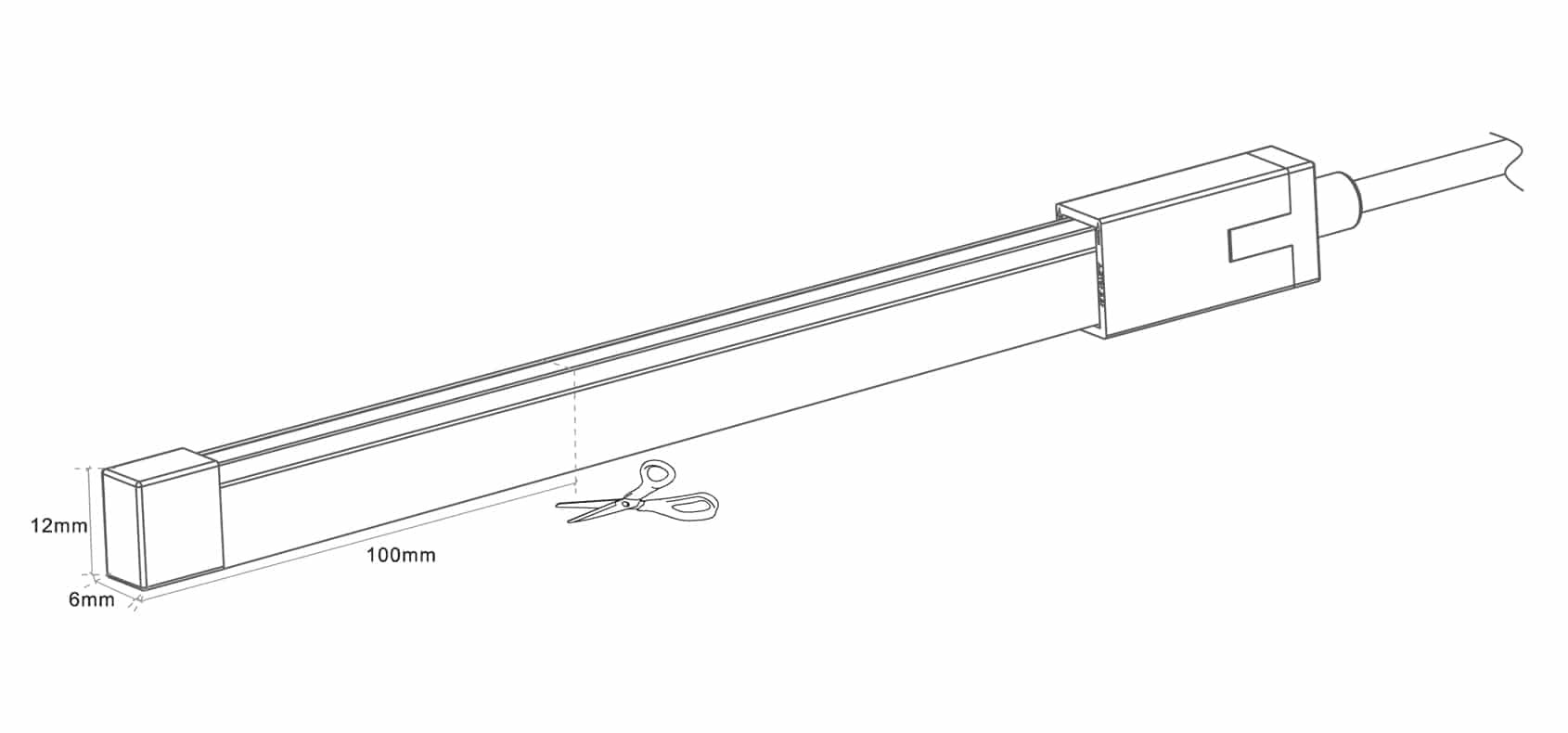

NEON FLEX SIDE BEND 6(W)*12(H)MM

BK-NS120-24V(RGB)

NEON FLEX MSIDE BEND 6X12MM *MAX LENGTH 10MTRS*
COLOR TEMPERATURE	LM/M	POWER/M	CRI (RA)	FPC
2700K	170LM	<10W	90+	3OZ
3000K	170LM	<10W	90+	3OZ

3500K	180LM	<10W	90+	3OZ

4000K	190LM	<10W	90+	3OZ

BK-NS120-24V(RGB)

PRODUCT INDUSTRY INFORMATION AND KNOWLEDGE

Product Market Conditions

Pvc and Silicone Neon Strips Are the Main Products in the Market. Pvc is Better Price but Not Resistant to Yellowing; Silicone is Resistant to Yellowing but a Bit More Expensive. And Our Neon Strips Have.

Professional Structure Design, Even Light, Dot Free, Soft Light, Good Color Temperature Consistency.
Using Silicone Material, Resistant to Yellowing, High and Low Temperature, Can Be Used in Harsh Environments Both Indoors and Outdoors.
Corrosion-resistant, Resistant to Weak Acid and Alkali Salt. Can Be Used in Extremely Harsh Environments.
Good Waterproof Performance, Waterproof Grade IP67.
Good Flexibility, Product Folding and Pulling Resistance, Easy to Shape, Convenient Delivery.
Adding Fold and Tensile Resistant Base Plate, Good Fold and Tensile Resistance.
Cutting Bit, Convenient and Accurate Cutting of Any Length.
Even the Strip and the Backing Plate Are Co-extruded, One Time Molding, the Product is Solid and Reliable.

How Do You Choose the Right Neon Strip for You?

First of All, You Need to Understand the Different Neon Strip Sizes and Glowing Effects to Choose the Right Shape and Glowing Effect for You.
Different Mold Structure, the Luminous Effect Will Be Correspondingly Different.
The Following One is the Front Side, Three Sides of the Light Emitting Neon Strip, the Greater the Distance Between the Pcb Board and the Light Emitting Surface, the Less Obvious the Light Spot.

Comparison of Various Parameters Between Neon Strips and Other Types of Led Strip Lights

CONTRAST ITEMS	SILICONE NEON STRIP	SILICONE GLUE STRIP	SILICONE TUBE STRIP
FORMABILITY	Through the Mold Molding, Can Make Various Sizes of Light Strips, the Degree of Molding is Excellent.	Can Only Be Dripped or Irrigated, Not Well Formed.	Through the Mold Molding, Can Make Various Sizes of Light Strips, the Degree of Molding is Excellent.
PRODUCTION SPEED	Fast Production, Warm Curing, Very Fast.	It Takes 24 Hours to Dry Glue, Slow.	Manual Threading, Slow.
PRODUCT CONSISTENCY	Co-Extrusion Process, Mold Forming, Good Consistency.	Manual or Machine Gluing, Varying Heights, Poor Consistency.	Artificially Threading the Light Board, the Strip Light is Not Firmly Fixed, Poor Consistency.
COLOR TEMPERATURE CONTROL	Molding, Sealing Glue Height Consistency, Good Color Temperature Consistency.	Poor Color Temperature Consistency.	Poor Color Temperature Consistency
FLEXURAL STRENGTH	High Tensile Strength of Silica Gel, Soft Colloid, Co-extrusion Process, the Light Board is Firmly Fixed, Our Company Added Anti-breakage Base Plate, Positive or Reverse Folding Resistance.	Liquid Silicone Has Weak Strength and Weak Flexural Resistance.	The Strip Light is Moving in the Sleeve, Bending or Rolling in the Opposite Direction, the Light Board Displacement, No Anti-breakage Base Plate, Poor Resistance to Folding.
TENSILE STRENGTH	High Strength Silicone, Co-extrusion Process, Light Board Fixed, Our Company to Join the Anti-bending and Anti-pull Off the Bottom Plate, Strong Tensile Strength.	Weak Strength of Liquid Silicone, All Rely on Own Load, Weak Tensile Strength	The Strip Light is Movable in the Casing, It Depends on the Force of Casing When Stretching, When Stretching and Retracting, Poor Tensile Strength.
TORSIONAL RESISTANCE	High Tensile Strength of Silica Gel, Soft Colloid, Co-extrusion Process, Our Company Added Anti-folding and Anti-pull Off the Bottom Plate, the Bottom Plate Effective Support, Good Torsional Resistance.	Weak Colloidal Strength, Dependent on the Circuit Board Force, Poor Torsional Resistance.	Light Board is Active in the Casing, Twisting Depends on the Force of the Casing, Serious Deformation of the Circuit Board, Poor Torsion Resistance.
LIGHTING CONSISTENCY	Co-Extrusion Process, Mold Forming, Good Consistency.	NON	Artificially Threading the Light Board, the Strip Light is Not Firmly Fixed, Poor Consistency.

Comparison of the Advantages and Disadvantages of Waterproof Led Strip Technology

CONTRAST ITEMS	SILICONE NEON STRIP	SILICONE GLUE STRIP	SILICONE TUBE STRIP
COLLODIAL TRANSPARENCY	95%	98%	90%
COLLOID ELONGATION AT BREAK	500%	100%	100%
UV RESISTANT	Excellent	Excellent	Normal
HIGH AND LOW-TEMPERATURE RESISTANCE	-60℃-300℃	-30℃-150℃	-60℃-300℃
RESISTANCE TO WEAK ACID AND ALKALI SALTS	Good	Normal	Normal
ENVIRONMENTAL PROTECTION	Food Grade	Normal	Normal
THERMAL CONDUCTIVITY	0.3-0.5	0.2	0.3-0.5
COLLOIDAL HARDNESS ( SHORE-A)	70-80	30-50	70-80

How to Determine if a Led Strip Supplier is Qualified?

The Main Areas to Judge Are Time of Establishment, Level of Professionalism, Customer Testimonials, Warranty Terms, and So on.

The First Thing You Need to Know is a Company’s History. There’s No Way a Company With a Questionable Product Has Been in Business for Many Years! So How Can You Tell if the Company Has Been in Business for Many Years? First of All, Look at His Business License on the Establishment of the Time, in Some Platforms to Advertise the Time Can Also Be Used as a Reference.

Secondly, to Understand His Degree of Professionalism, the Understanding of the Production Process, You Can Know Whether the Company is a Manufacturing Enterprise; the Understanding of the Quality Process Can Know Whether the Enterprise Pays Attention to Quality; Communication Accessibility Can Know Whether This Enterprise Often Communicate With Different Customers; Explain the Problems Encountered in Engineering Can Also Test the Professionalism of the Enterprise.

In Addition, Because of Professionalism, There Will Be a Reputation. Looking at the Successful Cooperation Case, and Communicating With the Old Customers Who Have Completed the Transaction, Are Good Ways to Judge Whether the Light Bar Supplier is Suitable.

Finally, You Can Write Some Guarantee Terms When You Sign the Contract. Such as Warranty for 3 Years, or 5 Years. If there is a Problem Who Will Pay for the Freight of Goods to and From Such Details. To Protect Their Best Interests.

General Installation, Precautions.

To Install a Product It is More Important to Understand the Construction of That Product, the Neon Strips Are as Follows.

Luminous Surface.
Olding, Tensile, and High and Low-Temperature Resistant Substrate.
Light Board.
Crop Windows.
Shading.
Lamp Beads.
Increased Friction During (Serrated) Installation.

How Do You Choose the Right Neon Strip for You?

Front-Emitting

Side-Emitting

Next, You Need to Choose the Right Color and Brightness.

The Brightness of the Neon Strip Can Be Adjusted According to the Strip. What Color, Brightness, and Effect is Needed Can Be Adjusted by the Controller. Generally.

The Brightness is Dimmed With a Dimming Controller for Single White Light. RGB, RGBW Uses an RGB Controller to Tune the Color Change.

The Illuminated Neon Strip is Controlled With a Spi or DMX Controller.

Regional Distribution of Companies in the Sector.

Lighting Industry, Mainly Distributed in the Southeast Coastal Area, There Are Guangdong Province, Foshan, Zhongshan, Dongguan, Shenzhen, and Other Places, as well as Zhejiang Ningbo, Fujian, Shandong, Shanghai and Other, Various Regions. Among Them, Shenzhen Pays More Attention to Technology Research and Development and Quality, Zhongshan and Ningbo, Zhejiang Pays More Attention to Capacity and Price. This is Mainly Due to the More Expensive Factory Rent in Shenzhen, the Need to Produce High Value-added Products to Increase the Price of Products. While Ningbo, Zhejiang, Zhongshan, and Ningbo, Zhejiang Have Lower Costs Mainly Because of Low Labor Costs and Low Rent of Production Rooms, Which Are Suitable for Labor-intensive Products, and Thus Mass Production.

DIVISION OF NEON STRIPS

By Sizes

The Common Neon Strip Sizes On The Market Are 6 X 12mm, 7 X 14mm, 10 X 10mm, 15 X 15mm,

10 X 22mm, 10 X 18mm, With Square, Mushroom Head Type.

The Square Shaped Light Emitting Surface Has A Larger Luminous Angle;

While The Mushroom Head Shape Has A Light Filtering Effect,

Which Can Make The Overall Go Without Light Spots.
